2011 Makes and Models

Light-duty Class 1-3 (up to 14,000-lb. GVWR)

2011 Untitled 12011 A Untitled 1Nissan enters commercial market, while Navistar, Ford go electric


Like many medium- and heavy-duty OEMs, several light-duty truck makers are launching new models and introducing big redesigns, updated engines and revamped platforms, along with a few other touchups worth noting, such as added technologies and safety features.



DODGE

Cummins Inc. announced a multiyear extension of its agreement with the Chrysler Group to supply 6.7L Turbo Diesel engines for Dodge Ram Heavy Duty pickups and Chassis Cab trucks. Cummins Filtration also announced the launch of the Fleetguard FS2: Filter-in-Filter fuel system technology.

FORD

Ford has four new engines for the F-150 and is promising a 20 percent overall fuel economy increase. Ford’s new 6R140 heavy-duty TorqShift six-speed transmission was designed to deliver power quickly and seamlessly while maximizing fuel economy in a wide range of tough applications. The all-electric version of the Transit Connect cargo van, which takes six to eight hours to charge, uses a Force Drive electric powertrain manufactured and integrated by Azure Dynamics.

GENERAL MOTORS

The 2011 Silverado HD and its GMC Sierra counterpart have received enough technological advancements in the frame, engine, braking and suspension areas to make it tow, haul, ride and perform better. GM went to a fully boxed frame and a heavier independent front suspension, both of which contribute to the new pickups’ enhanced load-carrying and towing capacities. The same new Duramax/Allison 1000 combo available on the Silverado and Sierra also will be available in the Chevrolet Express and GMC Savana vans.

HINO TRUCKS

Hino has brought its light-duty diesel-hybrid cabover to the United States for the first time. The diesel-hybrid COE, which has a 16-foot van body, is designed to provide fuel economy advantages and reduced carbon-dioxide output.

ISUZU

Isuzu Commercial Truck of America introduced its 12,000-pound GVWR NPR Eco-Max low-cab-forward truck, offering up to 20 percent improved fuel economy and increased payload capacity compared to previous NPR models. The truck is powered by Isuzu’s next-generation 4JJ1-TC diesel engine.

MERCEDES-BENZ

Mercedes-Benz USA has added a shuttle van model to Sprinter’s cargo van, passenger van and cab-chassis lineup.

NAVISTAR

Navistar’s eStar all-electric Class 3 delivery and cargo van can be plugged in and fully recharged within 6 to 8 hours. In the event that quick vehicle turnaround times are required, the battery cassette can be swapped out in 20 minutes, allowing the vehicle to return to the road for another 100 miles.

NISSAN

Nissan’s first entry into the commercial vehicle market in North America, the 2011 Nissan NV (Nissan Van), will be available in three models and in standard roof or high roof configurations. Tall, wide doors offer easy access to the cab and cargo areas. The NV also provides exceptional utility, thanks to a long, wide cargo floor, square-top wheelwell housings and nearly vertical sidewalls.


CHEVROLET

www.chevrolet.com


AVALANCHE

Model: SUV/Pickup 2WD/4WD

Payload (lb.): 1,524-1,601

Wheelbase (in.): 130

Length overall (in.): 221.3

Gas/E85 Engine: 5.3L V8

HP @ rpm: 320 @ 5200

GVWR (lb.): 7,000-7,200


COLORADO

Model: Full-Size Pickup Regular/ Extended/Crew Cab 2WD/4WD

Payload (lb.): 1,465-1,484/1,422-1,741/1,230-1,572

Wheelbase (in.): 111.3-126

Length overall (in.): 192.4-207.1

Gas Engine: 2.9L I4

HP @ rpm: 185 @ 5600

Gas Engine: 3.7L I5

HP @ rpm: 242 @ 5600

Gas Engine: 5.3L V8

HP @ rpm: 300 @ 5200

GVWR (lb.): 4,850-5,300


EXPRESS

Model: Regular/Extended Van G1500/H1500/G2500/G3500

Payload (lb.): 1,726- 4,151

Wheelbase (in.): 135-155

Length overall (in.): 224.1-244

Gas Engine: 4.3L V6

HP @ rpm: 195 @ 4600

Gas Engine: 4.8L V8

HP @ rpm: 280 @ 5200

Gas Engine: 5.3L V8

HP @ rpm: 310 @ 5200

Gas Engine: 6.0L V8

HP @ rpm: 323 @ 4400

Diesel Engine: 6.6L V8

HP @ rpm: 250 @ 3200

GVWR (lb.): 7,300-9,600


HHR PANEL VAN

Model: LS/1LT/2LT/SS

Payload (lb.): 900

Wheelbase (in.): 103.5

Length overall (in.): 176.2-176.5

Gas Engine: 2.2L V4

HP @ rpm: 155 @ 6100

E85 Engine: 2.2L V4

HP @ rpm: 161 @ 6000

Gas Engine: 2.4L V4

HP @ rpm: 172 @ 5800

E85 Engine: 2.4L V4

HP @ rpm: 176 @ 5800

Diesel Engine: 2.0L V4

HP @ rpm: 260 @ 5300 (manual)/250 @ 5900 (automatic)

GVWR (lb.): 4,173-4,244

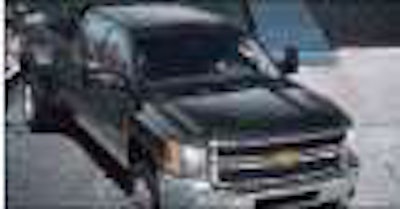

Chevrolet SilveradoChevrolet Silverado

SILVERADO

Model: Full-Size Pickup 1500/2500HD/3500HD/

Hybrid Regular/Extended/Crew Cab 2WD/4WD

Payload (lb.): 1,459-6,635

Wheelbase (in.): 119-167.7

Length overall (in.): 205.6-259.1

Gas Engine: 4.3L V6

HP @ rpm: 195 @ 4600

Gas/Ethanol Engine: 4.8L V8

HP @ rpm: 302 @ 5600

Gas/Ethanol Engine: 5.3L V8

HP @ rpm: 315 @ 5200

Gas Engine: 6.0L V8

HP @ rpm: 322 @ 4400

Gas Engine: 6.0L V8

HP @ rpm: 360 @ 5400

Hybrid Engine: 6.0L V8

HP @ rpm: 332 @ 5100

GVWR (lb.): 6,400-13,000


SUBURBAN

Model: SUV Half-ton/Three-quarter-ton LS/LT/LTZ 2WD/4WD

Payload (lb.): 1,354-2,385

Wheelbase (in.): 130

Length overall (in.): 222.4

Gas/E85 Engine: 5.3L V8

HP @ rpm: 320 @ 5400

Gas/E85 Engine: 6.0L V8

HP @ rpm: 352 @ 5400

GVWR (lb.): 7,200-8,600


TAHOE

Model: SUV LS/LT/LTZ 2WD/4WD/Hybrid

Payload (lb.): 1,406-1,830

Wheelbase (in.): 116

Length overall (in.): 202

Gas/E85 Engine: 5.3L V8

HP @ rpm: 320 @ 5400

Hybrid Engine: 6.0L V8

HP @ rpm: 332 @ 5100

GVWR (lb.): 7,100-7,300



DODGE

www.dodge.com


CARAVAN

Model: Grand Caravan Van

Payload (lb.): 1,800

Wheelbase (in.): 121.2

Length overall (in.): 202.5

Gas/Flex-Fuel Engine: 3.3L V6

HP @ rpm: 175 @ 5600

Gas Engine: 3.8L V6

HP @ rpm: 197 @ 5600

Gas Engine: 4.0L V6

HP @ rpm: 251 @ 6000

GVWR (lb.): 6,050


DAKOTA

Model: Compact Pickup ST/Big Horn/Lone Star/Laramie/TRX4-Offroad Extended Cab/Crew Cab 2WD/4WD

Payload (lb.): 1,180-1,810

Wheelbase (in.): 131.3

Length overall (in.): 218.5

Gas Engine: 3.7L V6

HP @ rpm: 210 @ 5200

Gas Engine: 4.7L V8

HP @ rpm: 302 @ 4600

GVWR (lb.): 6,010


JOURNEY

Model: SUV SE/SXT/Crew/RT FWD/AWD

Wheelbase (in.): 113.8

Length overall (in.): 192.4

Gas Engine: 2.4L I4

HP @ rpm: 173 @ 6000

Gas Engine: 3.5L V6

HP @ rpm: 235 @ 6400

GCVW (lb.): 3,796-4,239

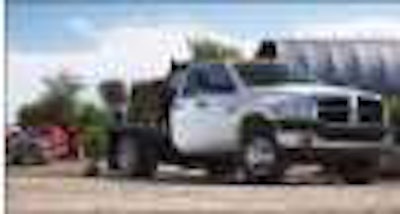

Dodge Ram Chassis CabDodge Ram Chassis Cab

RAM

Model: Full-Size Pickup Regular/Crew Cab/Quad Cab/Mega Cab/Box-Off/Chassis Cab/Hybrid 1500, 2500, 3500 2WD/4WD

Payload (lb.): 1,190-5,050

Wheelbase (in.): 120-169.5

Length overall (in.): 209-259.4

Gas Engine: 3.7L V6

HP @ rpm: 210 @ 5200

Gas Engine: 4.7L V8

HP @ rpm: 302 @ 5650

Gas Engine: 5.7L Hemi V8

HP @ rpm: 383 @ 5800

Diesel Engine: 6.7L I6 Turbo Diesel

HP @ rpm: 350 @ 3000

GVWR (lb.): 6,200-12,200



FORD

www.fordvehicles.com


E-SERIES

Model: Van/Wagon E-150/

E-250/E-250 Super Duty/

E-350/E-450 SD Cutaway/Stripped/Chassis Cab XL/XLT/Lariat

Payload (lb.): 2,525-4,090

Wheelbase (in.): 138-201

Length overall (in.): 216.7-286.5

Gas Engine: 4.6L V8

HP @ rpm: 225 @ 4800

Gas Engine: 5.4L V8

HP @ rpm: 255 @ 4500

Gas Engine: 6.7L @ V8

HP @ rpm: 300 @ 2800

Gas Engine: 6.8L @ V10

HP @ rpm: 305 @ 4250

Gas Engine: 6.8L @ V10

HP @ rpm: 362 @ 4750

Diesel Engine: 6.0L V8

HP @ rpm: 235 @ 3150

GVWR (lb.): 8,520-14,500


F-SERIES PICKUPS

Model: F-150 Regular Cab/SuperCab/Super Crew 2WD/4WD

Axle: 4×2/4×4

Payload (lb.): 1,420-3,030

Wheelbase (in.): 126-163

Length overall (in.): 213.1-250.3

Gas Engine: 3.7L V6

HP @ torque (lb-ft): 300 @ 275

Gas Engine: 5.0L V8

HP @ torque (lb-ft): 360 @ 380

Gas Engine: 6.2L V8

HP @ torque (lb-ft): 411 @ 434

EcoBoost Engine: 3.5L V6

HP @ rpm: 300 @ 2000-2500

GVWR (lb.): 6,450-8,200

Model: Super Duty

F-250/F-350 Regular/Super/Crew/Chassis Cab XL/XLT 2WD/4WD

Axle: 4×2/4×4

Payload (lb.): 4,050-6,520

Wheelbase (in.): 137-176

Length overall (in.): 226.5-263.0

Gas/E85 Engine: 6.2L V8

HP @ rpm: 316 @ 4179

Gas/E85 Engine: 6.2L V8

HP @ rpm: 385 @ 5200

Gas/E85 Engine: 6.2L V8

HP @ rpm: 385 @ 5500

Diesel/Biodiesel Engine: 6.7L V8

HP @ rpm: 300 @ 2800

Diesel/Biodiesel Engine: 6.7L V8

HP @ rpm: 390 @ 2800

GVWR (lb.): 9,400-13,300


RANGER

Model: Regular Cab/

SuperCab

Axle: 4×2/4×4

Payload (lb.): 1,260

Wheelbase (in.): 111.5-125.9

Length overall (in.): 189.4-203.6

Gas Engine: 4.0 V6

HP @ rpm: 207 @ 5250

Diesel Engine: 2.3L I4

HP @ rpm: 143 @ 5250

GVWR (lb.): 4,380-5,000

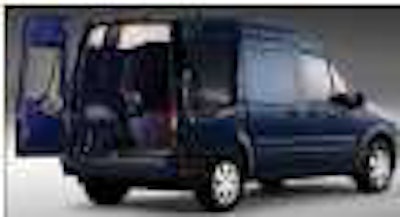

Ford Transit ConnectFord Transit Connect

TRANSIT CONNECT

Model:100A/200A/300A/110A/210A/310A XL/XLT

Axle: 4×2

Payload (lb.): 1,600

Wheelbase (in.): 114.6

Length overall (in.): 180.7

Turning circle (ft.): 39

Diesel Engine: 2.0L I4

HP @ rpm: 136 @ 6300

Electric motor/battery: 28-kWh lithium-ion battery pack

Range: Up to 80 miles

GVWR (lb.): 5,005



GMC

www.gmc.com


CANYON

Model: Full-Size Pickup Regular/ Extended/Crew Cab 2WD/4WD

Payload (lb.): 1,465-1,484/1,422-1,741/1,230-1,572

Wheelbase (in.): 111.3-126

Length overall (in.): 192.4-207.1

Gas Engine: 2.9L I4

HP @ rpm: 185 @ 5600

Gas Engine: 3.7L I5

HP @ rpm: 242 @ 5600

Gas Engine: 5.3L V8

HP @ rpm: 300 @ 5200

GVWR (lb.): 4,850-5,300

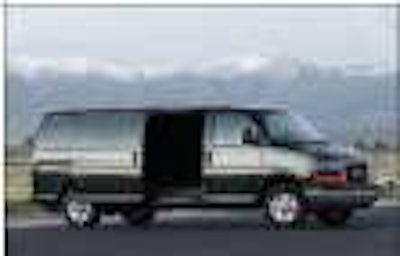

GMC Savana G2500GMC Savana G2500

SAVANA

Model: Regular/Extended Van G1500/G2500/G3500

Payload (lb.): 1,726- 4,151

Wheelbase (in.): 135-155

Length overall (in.): 224.1-244

Gas Engine: 4.3L V6

HP @ rpm: 195 @ 4600

Gas Engine: 4.8L V8

HP @ rpm: 280 @ 5200

Gas Engine: 5.3L V8

HP @ rpm: 310 @ 5200

Gas Engine: 6.0L V8

HP @ rpm: 323 @ 4400

Diesel Engine: 6.6L V8

HP @ rpm: 250 @ 3200

GVWR (lb.): 7,300-9,600


SIERRA

Model: Full-Size Pickup 1500/2500HD/3500HD/Hybrid Regular/Extended/Crew Cab 2WD/4WD

Payload (lb.): 1,459-6,635

Wheelbase (in.): 119-167.7

Length overall (in.): 205.6-259.1

Gas Engine: 4.3L V6

HP @ rpm: 195 @ 4600

Gas/Ethanol Engine: 4.8L V8

HP @ rpm: 302 @ 5600

Gas/Ethanol Engine: 5.3L V8

HP @ rpm: 315 @ 5200

Gas Engine: 6.0L V8

HP @ rpm: 322 @ 4400

Gas Engine: 6.0L V8

HP @ rpm: 360 @ 5400

Hybrid Engine: 6.0L V8

HP @ rpm: 332 @ 5100

GVWR (lb.): 6,400-13,000



HINO

www.hino.com

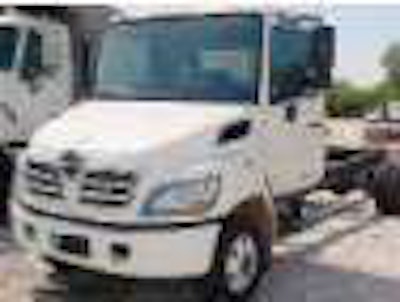

Hino 145Hino 145

Model: 145 Diesel Hybrid

Wheelbase (in.): 147-201

Length overall (in.): 244.6-310.6

BBC (in.): 98

CA (in.): 83.6-137.6

Engine: Hino J05D-TF

HP @ rpm: 175 @ 2500

Torque (lb-ft) @ rpm: 376 @ 1600

GVWR (lb.): 14,000



HONDA

http://www.automobiles.honda.com

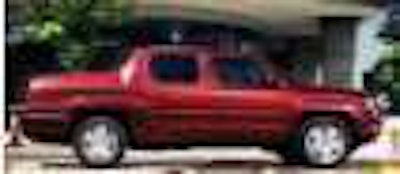

Honda RidgelineHonda Ridgeline

RIDGELINE

Model: RT/RTS/RTL

Axle: 4×2/4×4

Payload (lb.): 1,486-1,546

Wheelbase (in.):122

Length overall (in.): 207

Gas Engine: 3.5L V6

HP @ rpm: 250 @ 5700

GVWR (lb.): 6050



ISUZU

www.isuzucv.com


NPR

Model: NPR Eco-Max

(Crew Cab available)

Wheelbase (in.): 110-151

Length overall (in.): 200.5-267.5

CA (in.): 86.5-153.5

Diesel Engine: 3.0L Turbo/

Intercooled 4JJ1-TC

HP @ torque (lb-ft): 150 @ 282

GVWR (lb.): 12,000



MERCEDES-BENZ USA

www.mbusa.com

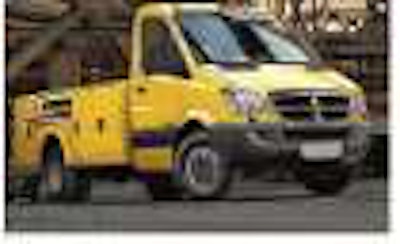

Mercedes-Benz USA SprinterMercedes-Benz USA Sprinter

SPRINTER

Model: Sprinter 2500 HC/2500 SHC/3500 HC/3500 SHC Cargo/Passenger/ Cab Chassis/Shuttle

Payload (lb.): 2,388-6,269

Wheelbase (in.): 144-170

Length overall (in.): 232.5-289.2

Diesel Engine: 3.0L V6 Turbo

HP @ rpm: 188 @ 3800

GVWR (lb.): 8,550-11,030



MITSUBISHI FUSO

www.mitfuso.com


FE SERIES

Model: FE125

Payload (lb.): 6,600

Wheelbase (in.): 114.6-152.4

Length overall (in.): 227.2-265

Diesel engine: 4.9L 4I Turbo/Intercooled

HP @ rpm: 185 @ 2700

GVWR (lb.): 12,500


FG SERIES

Model: FG140 4×4

Payload (lb.): 8,015

Wheelbase (in.): 138.2

Length overall (in.): 225

Diesel Engine: 4.9L 4I Turbo/

Intercooled

HP @ rpm: 155 @ 2700

GVWR (lb.): 14,000



NAVISTAR

www.navistar.com

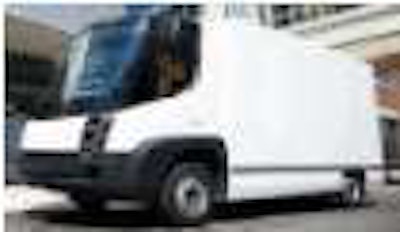

Navistar eStarNavistar eStar

ESTAR

Payload (lb.): 4,000

Turning circle (ft.): 36

Motor/battery: 70 kW/80kWhr

lithium-ion cassette

Range: Up to 100 miles

Maximum speed (mph): 50

HP @ torque (lb-ft): 102 @ 221

GVWR (lb.): 12,100



NISSAN

www.nissanusa.com/trucks

www.nissancommercialvehicles.com


FRONTIER

Model: King Cab/Crew Cab XE/SE/ PRO-4X/LE

Payload (lb.): 899-1,583

Wheelbase (in.): 125.9-139.9

Length overall (in.): 205.5-219.4

Gas Engine: 4.0L V6

HP @ rpm: 261 @ 5600

Diesel Engine: 2.5L I4

HP @ rpm: 152 @ 5200

Curb Weight (lb.): 3,678-4,648


NV

Model: Van 1500, 2500 HD, 3500 HD Standard Roof/High Roof

Axle: 4×2

Cargo volume (cu. ft.): 220-300

Wheelbase (in.): 146.1

Length overall (in.): 240.9

Gas Engine: 4.0L V6

Gas Engine: 5.6L V8


TITAN

Model: King Cab/Crew Cab XE/SE/PRO-4X/LE

Payload (lb.): 1,644-2,153

Wheelbase (in.): 139.8-159.5

Length overall (in.): 224.6-244.2

Gas Engine: 5.6L DOHC V8

HP @ rpm: 317 @ 5200

Curb Weight (lb.): 4,987-5,627



TOYOTA

www.toyota.com


TACOMA

Model: Regular/Access/Double Cab/X-Runner

Axle: 4×2/4×4

Payload (lb.): 895-1,510

Wheelbase (in.): 109.4-140.6

Length overall (in.): 190.4-221.3

Engine: 2.7L I4 DOHC with VVT-i

HP @ rpm: 159 @ 5200

Engine: 4.0L V6 DOHC with VVT-i

HP @ rpm: 236 @ 5200

GVWR (lb.): 4,600-5,350

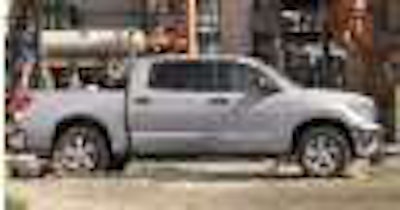

Toyota TundraToyota Tundra

TUNDRA

Model: Full-Size Regular/

Double/CrewMax Cab Work Truck/Platinum 2WD/4WD

Axle: 4×2/4×4

Payload (lb.): 1,415-2,090

Wheelbase (in.): 126.8-164.6

Length overall (in.): 209.8-246.7

Engine: 4.0L V6

HP @ rpm: 236 @ 5200

Engine: 4.6L V8

HP @ rpm: 310 @ 5600

Engine: 5.7L V8

HP @ rpm: 381 @ 5600

GVWR (lb.): 6,200-7,200



UD TRUCKS

www.udtrucks.com

Model: UD1400

Payload (lb.): 8,510-8,685

Wheelbase (in.): 108.86-149.41

CA (in.): 83.38-123.94

Length overall (in.): 203.15-243.7

Diesel Engine: MD-175 I4 Turbo/Intercooled

HP @ rpm: 175 @ 2500

GVWR (lb.): 14,000

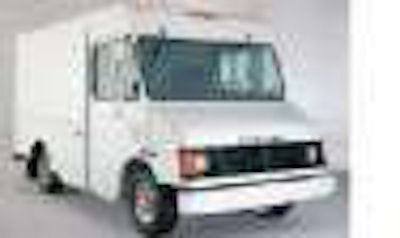

Workhorse W42Workhorse W42

www.workhorse.com

Model: W42

Wheelbase (in.): 125-190

Gas Engine: 4.8L V8

HP @ rpm: 264 @ 4800

Gas Engine: 6.0L V8

HP @ rpm: 307 @ 4600

Diesel Engine: MaxxForce 5

HP @ rpm: 200 @ 2700

GVWR (lb.): 9,400-14,000

– Compiled by Dean Smallwood


About Makes & Models

Makes & Models is intended to give truck buyers a general overview of what’s available for 2011. Basic specs are provided, including wheelbases, GVWRs and engine choices, along with a capsule summary of what’s new from each manufacturer.

This is the first installment of Makes & Models, covering light-duty vehicles in Classes 1-3. We’ll cover medium-duty (Classes 4-6) in October, and we’ll look at heavy-duty (Classes 7-8) in November. Keep in mind that these are preliminary listings, as new models, specs and features may be released later this year.
