TE Connectivity’s power connector

Updated Jul 9, 2020

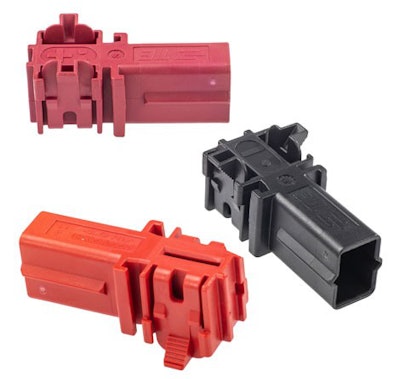

Te Connectivity Pcon 12 One Position 90 Degree Unsealed Power Connector 2020 07 08 09 16TE’s PCON 12 One-Position 90-Degree Unsealed Power Connector is made of flame-retardant material to support in-cabin power applications with a current-carrying capability of up to 60 amps at 90 degrees Celsius. Thanks to its 90-degree cable exit configuration, the connector can be used in tight spaces inside the vehicle’s cabin. Each connector has positive and negative markings and can accept wire sizes up to 16 square millimeters to allow establishing high-power connections. The connector also offers three polarization key mating configurations, which help prevent polarity mismatches, as well as dual side-actuated snap-in locking features designed to provide an audible “click” for an added layer of security.

TE Connectivity, www.te.com/ict
