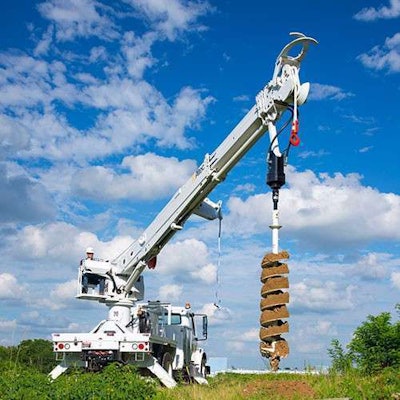

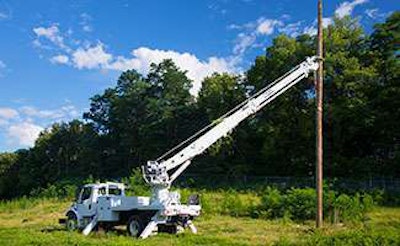

Altec recently added two more digger derricks to its lineup. The DH45H is shown above.Altec released two new digger derricks, the DT105 and the DH-H Series, which will be available as models DH45H, DH48H and DH50H.
The DT105 Digger Derrick is a hydraulically-actuated, continuous rotation, heavy-duty transmission digger derrick designed with steel load-bearing structures.
Reaching a height of 105 feet, it is the largest digger derrick in Altec’s DT Series. The DT105 is ideal for transmission maintenance and construction, but can also be used in a wide variety of applications.
Design features include a 105-foot sheave height with articulating boom tip; 60,000 pounds maximum capacity; ability to road up to a 48 inch auger; 1,200 pound capacity steel, two man platform with radio remotes; and a fiberglass fly-boom for personnel and material handling
The DH-H Series is the fully hydraulic version of Altec’s new DH product family. It has the highest strength-to-weight ratio within Altec’s digger derrick product line.
It is also the only derrick to have a zone rated capacity system that will allow the operator to lift more weight off of the back than the sides when on a single axle chassis.
The units available in the DH-H Series, the DH45H, DH48H, and DH50H, offer sheave height options for all uses.
Design features include boom capacity up to 16,050 pounds at a 10 foot load radius (depending on model); overall unit weight and available pay load on a 33,000 GVW chassis; a zone rating system.
