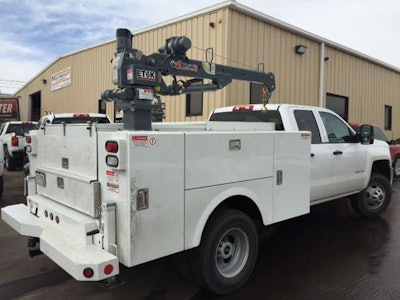

Venco Venturo has added a new electric crane to its telescopic service crane product line.
The standard configuration for the ET6K includes a manual extension boom from six to 10 feet and hydraulic elevation from -5 to +75 degrees. The crane’s rating is 6,000 foot-pounds with a maximum lifting capacity of one ton – falling below the OSHA requirement for operator certification – making it exempt from OSHA 1926.1427 operator certification requirements.
The ET6K winch features a high-efficiency, heavy-duty three-stage electric planetary gear drive, 12V permanent magnet motor and dual braking systems, and comes standard with a capacity overload shut-off system, aircraft-quality wire rope, and remote control pendant.
Available options include radio remote control, anti two-block system which meets ANSI B30.5 safety standards, mounting pedestals for platform body applications, outriggers and jacklegs for a variety of truck bodies and an adjustable boom rest with a load block storage hook.
The ET6K is recommended for general service applications on any truck with a GVWR of 8,000 LBS or more.
