Light- and medium-duty Class 1-6
Truck makers revamp lineups, debut new models in response to growing market
The light-duty truck market isn’t seeing many changes for 2012, but the same can’t be said for the medium-duty truck makers, which are launching several new models and introducing big redesigns, updated engines and revamped platforms in response for a growing market for lighter trucks. Here are some highlights:

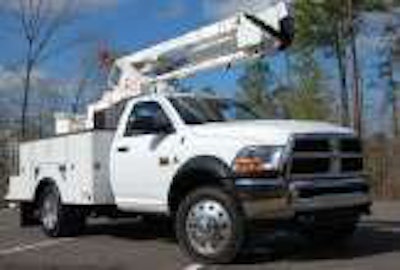

Dodge Ram 5500Chevrolet/GMC: Both the Chevrolet Express and GMC Savana cutaway 3500 and 4500 commercial vans now offer a liquefied petroleum gas option.
Dodge: Ram Trucks beefed up trailer towing capacity for its 3500 pickups, now pulling 22,700 pounds maximum. The 4500 and 5500 medium-duty Class 4 and 5 chassis cabs are available with an optional 30,000-pound GCWR, while a tow package is available on both regular and crew cab models in 4×2 and 4×4 configurations.
Ford: A tougher frame and hitch, along with software upgrades, allow F-350 and F-450 Super Duty trucks with a Power Stroke diesel engine and dual rear wheels to tow 17,500 pounds.

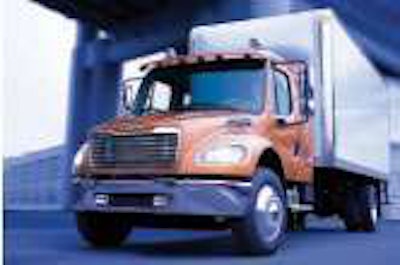

Freightliner Business Class M2 Extended CabFreightliner: An automated manual transmission now is available on Business Class M2 trucks. The AMT3 combines the design principles of a manual transmission with intelligent electronics to create an automated two-pedal shift system that helps improve driver performance and fuel economy. The AMT3 eliminates the torque converter and couples the engine to the transmission with a hydraulically actuated clutch, which helps reduce wear.
Hino: Two new diesel and two diesel-electric hybrid cab-over-engine trucks now are available for the Class 4 and 5 North American markets. The Class 4 155 diesel and 155h diesel-electric hybrid models have a 14,500-pound GVW rating, while the Class 5 195 diesel and 195h diesel-electric hybrid models carry a 19,500-pound GVW rating. All models feature Hino’s J05E Series 5-liter engine and Aisin’s A465 6-speed automatic transmission.
Mercedes-Benz USA SprinterIsuzu: Isuzu Commercial Truck of North America and Utilimaster joined forces to create the Reach pickup-and-delivery van, which features a body designed by Utilimaster on an Isuzu NPR Eco-Max chassis and is powered by Isuzu’s 3.0-liter diesel engine. The Reach provides added fuel economy and the functionality of a custom-built work truck along with the styling and ergonomics of a cargo van.
Kenworth: A 6×6 configuration for the T370 medium-duty truck features a factory-installed front drive axle available in ratings ranging from 10,000 to 16,000 pounds with a 40,000-pound-rated rear suspension.
Mitsubishi Fuso: The new Canter FE/FG Series cab-over-engine trucks include five models in the Class 3-5 markets. The company’s new 4P10 diesel engine – a turbocharged, intercooled four-cylinder model – is coupled to an advanced Mitsubishi Fuso Duonic six-speed dual-clutch automated manual transmission. The Canters use Daimler’s BlueTec selective catalytic reduction emissions technology.
Navistar: The International TerraStar now is available in a 4×4 version to meet more severe demands. Navistar also now offers a broader range of alternative-fueled vehicles for its medium-duty lineup, including a DuraStar Hybrid and a DuraStar model powered by either compressed or liquefied natural gas.
Peterbilt: Model 337, available in truck and tractor configurations, features the Paccar PX-6 engine and can be spec’d with either an Eaton Fuller manual or Allison automatic transmission; the truck also can be ordered with a hybrid powertrain. The PX-8 engine with all-wheel-drive also is available.
Makes & Models is intended to give truck buyers a general overview of what’s available for 2012. Basic specs are provided, including wheelbases, GVWRs and engine choices, along with a capsule summary of what’s new from each manufacturer. Keep in mind that these are preliminary listings, as new models, specs and features may be released later this year.
Light- and Medium-Duty
Class 1-6
(Up to 26,000-lb GVWR)
CHEVROLET
AVALANCHE
Model: SUV/Pickup 2WD/4WD LS/LT/LTZ
Payload (lb.): 1,598
Wheelbase (in.): 130
GMC Savana G2500 Cargo VanLength overall (in.): 221.3
Gas/E85 Engine: 5.3L V8
HP @ rpm: 320 @ 5400
GVWR (lb.): 7,200
COLORADO
Model: Full-Size Pickup Regular/Extended/Crew Cab 2WD/4WD
Payload (lb.): 1,465-1,484/1,422-1,741/1,230-1,572
Wheelbase (in.): 111.3-126
Length overall (in.): 192.4-207.1
Gas Engine: 2.9L I4

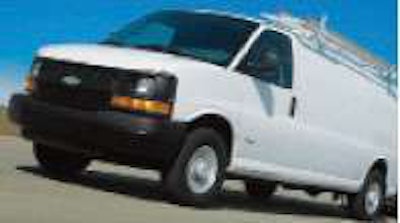

Chevrolet Express 3500 Cargo VanHP @ rpm: 185 @ 5600
Gas Engine: 3.7L I5
HP @ rpm: 242 @ 5600
Gas Engine: 5.3L V8
HP @ rpm: 300 @ 5200
GVWR (lb.): 4,850-5,300
EXPRESS
Model: Regular/Extended Van G1500/H1500/G2500/G3500
Payload (lb.): 1,568- 4,343
Wheelbase (in.): 135-155
Length overall (in.): 224.1-244
Gas Engine: 4.3L V6
HP @ rpm: 195 @ 4600
Gas Engine: 4.8L V8

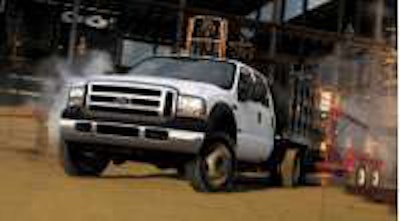

Ford F-550 Super Duty XLTHP @ rpm: 280 @ 5200
Gas Engine: 5.3L V8
HP @ rpm: 310 @ 5200
Gas Engine: 6.0L V8
HP @ rpm: 324 @ 4700
Diesel Engine: 6.6L V8
HP @ rpm: 260 @ 3100
GVWR (lb.): 7,300-9,900
HHR PANEL VAN
Model: LS/1LT/2LT/SS
Payload (lb.): 900
Wheelbase (in.): 103.5
Length overall (in.): 176.2-176.5
Gas Engine: 2.2L V4
HP @ rpm: 155 @ 6100
Peterbilt 337E85 Engine: 2.2L V4
HP @ rpm: 161 @ 6000
Gas Engine: 2.4L V4
HP @ rpm: 172 @ 5800
E85 Engine: 2.4L V4
HP @ rpm: 176 @ 5800
Diesel Engine: 2.0L V4
HP @ rpm: 260 @ 5300 (manual)/
250 @ 5900 (automatic)
GVWR (lb.): 4,173-4,244
SILVERADO
Model: Full-Size Pickup 1500/2500HD/3500HD/
Hybrid Regular/Extended/Crew Cab 2WD/4WD
Payload (lb.): 1,459-6,635
Wheelbase (in.): 119-167.7
Length overall (in.): 205.6-259.1
Gas Engine: 4.3L V6
HP @ rpm: 195 @ 4600

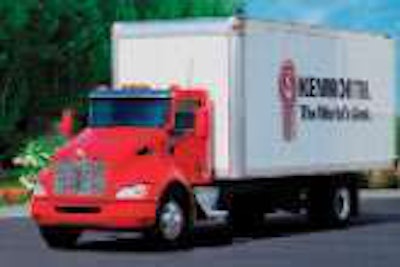

Kenworth T370Gas/Ethanol Engine: 4.8L V8
HP @ rpm: 302 @ 5600
Gas/Ethanol Engine: 5.3L V8
HP @ rpm: 315 @ 5200
Gas Engine: 6.0L V8
HP @ rpm: 322 @ 4400
Gas Engine: 6.0L V8
HP @ rpm: 360 @ 5400
Gas Engine: 6.2L V8
HP @ rpm: 403 @ 5400
Hybrid Engine: 6.0L V8

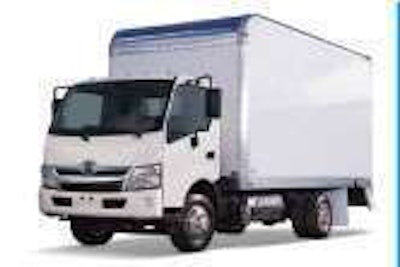

Hino 155HP @ rpm: 332 @ 5100
GVWR (lb.): 6,400-13,000
SUBURBAN
Model: SUV half-ton/three-quarter-ton LS/LT/LTZ 2WD/4WD
Payload (lb.): 1,593-2,561
Wheelbase (in.): 130
Length overall (in.): 222.4
Gas/E85 Engine: 5.3L V8
HP @ rpm: 320 @ 5400
Gas/E85 Engine: 6.0L V8
HP @ rpm: 352 @ 5400
GVWR (lb.): 7,200-8,600
TAHOE
Model: SUV LS/LT/LTZ 2WD/4WD/Hybrid

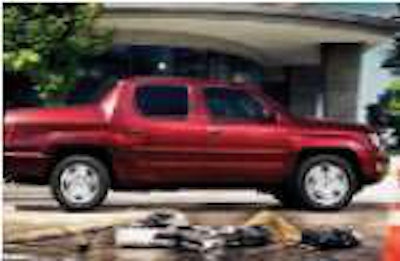

Honda RidgelinePayload (lb.): 1,393-1,471
Wheelbase (in.): 116
Length overall (in.): 202
Gas/E85 Engine: 5.3L V8
HP @ rpm: 320 @ 5400
Hybrid Engine: 6.0L V8
HP @ rpm: 332 @ 5100
GVWR (lb.): 7,100-7,300
DODGE
CARAVAN
Model: Grand Caravan Van Cargo/Express/Mainstreet/Crew/RT
Payload (lb.): 1,800
Wheelbase (in.): 121.2
Length overall (in.): 202.8
Gas/Flex-Fuel Engine: 3.6L V6
HP @ rpm: 283 @ 6350
GVWR (lb.): 6,050
DAKOTA
Model: Compact Pickup ST/Big Horn/Lone Star/Laramie/TRX4-Offroad Extended Cab/Crew Cab 2WD/4WD
Payload (lb.): 1,340-1,810
Wheelbase (in.): 131.3
Length overall (in.): 218.5
Gas Engine: 3.7L V6
HP @ rpm: 210 @ 5200

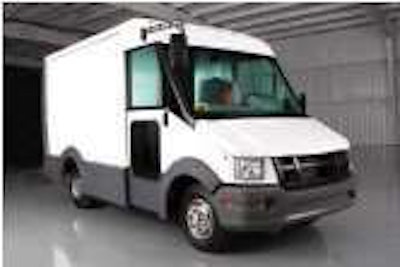

Isuzu Reach VanGVWR (lb.): 6,010
JOURNEY
Model: SUV SE/SXT/Crew/RT FWD/AWD
Wheelbase (in.): 113.8
Length overall (in.): 192.4
Gas Engine: 2.4L I4
HP @ rpm: 173 @ 6000
Gas Engine: 3.6L V6
HP @ rpm: 280 @ 6400
GCVW (lb.): 3,796-4,239
RAM
Model: Full-Size Pickup Regular/Crew Cab/Quad Cab/Mega Cab/Box-Off/Chassis Cab/Hybrid 1500, 2500, 3500 2WD/4WD
Payload (lb.): 1,146-6,493
Wheelbase (in.): 120-172.3
Length overall (in.): 209-263.2
Gas Engine: 3.7L V6
HP @ rpm: 215 @ 5200
Gas Engine: 4.7L V8
HP @ rpm: 310 @ 5650
Gas Engine: 5.7L Hemi V8
HP @ rpm: 383-390 @ 5600
Diesel Engine: 6.7L I6 Turbo Diesel
HP @ rpm: 350 @ 3000
GVWR (lb.): 6,025-13,000
Model: Chassis Cab 4500, 5500 2WD/4WD Regular/Quad
Payload (lb.): 7,790-11,860
Wheelbase (in.): 144.5-204.5
Length overall (in.): 235.3-295.3
CA (in.): 60-120
Gas Engine: 5.7L V8
HP @ rpm: 383-390 @ 5600
Diesel Engine: Turbo 6.7L V8
HP @ rpm: 305 @ 2900
Torque (lb-ft) @ rpm: 610 @ 1600
GVWR (lb.): 16,000-19,500
Model: C/V
Payload (lb.): 1,540
Wheelbase (in.): 121.2
Length overall (in.): 202.8
Towing capacity (lb.): 3,600
Gas Engine: 3.6L V6
HP @ rpm: 280 @ 6400
Torque (lb-ft) @ rpm: 260 @ 4800
GVWR (lb.): 6,050
FORD
E-SERIES
Model: Van/Wagon E-150/
E-250/E-250 Super Duty/
E-350/E-450 SD Cutaway/Stripped/Chassis Cab XL/XLT/Lariat
Payload (lb.): 3,110-9,040
Wheelbase (in.): 138-176
Length overall (in.): 216.7-261.1
Gas Engine: 4.6L V8
HP @ rpm: 225 @ 4800
Gas Engine: 5.4L V8
HP @ rpm: 255 @ 4500
Gas Engine: 6.7L @ V8
HP @ rpm: 300 @ 2800
Gas Engine: 6.8L @ V10
HP @ rpm: 305 @ 4250
Gas Engine: 6.8L @ V10
HP @ rpm: 362 @ 4750
Diesel Engine: 6.0L V8
HP @ rpm: 235 @ 3150
GVWR (lb.): 8,520-14,500
F-SERIES PICKUPS
Model: F-150 Regular Cab/SuperCab/Super Crew 2WD/4WD
Axle: 4×2/4×4
Payload (lb.): 930-3,060
Wheelbase (in.): 125.9-163.1
Length overall (in.): 213.2-250.4
Gas Engine: 3.7L V6
HP @ rpm: 302 @ 6500
Gas Engine: 5.0L V8
HP @ rpm: 360 @ 5500
Gas Engine: 6.2L V8
HP @ rpm: 411 @ 5500
EcoBoost Engine: 3.5L V6
HP @ rpm: 365 @ 5000
GVWR (lb.): 6,450-8,200
Model: Super Duty
F-250/F-350 Regular/Super/Crew/Chassis Cab XL/XLT 2WD/4WD
Axle: 4×2/4×4
Payload (lb.): 3,030-7,110
Wheelbase (in.): 137-172.4
Length overall (in.): 227.6-263.0
Gas/E85 Engine: 6.2L V8
HP @ rpm: 316 @ 4179
Gas/E85 Engine: 6.2L V8
HP @ rpm: 385 @ 5500
Diesel/Biodiesel Engine: 6.7L V8
HP @ rpm: 400 @ 2800
GVWR (lb.): 9,900-13,300
Model: F-450/F-550 Pickup/Chassis Regular/Super/Crew Cab XL/XLT
Axle: 4×2/4×4
Payload (lb.): 7,378-12,692
Wheelbase (in.): 140.8-200.8
Length overall (in.): 226.5-286.5
BBC (in.): 118.2-153.6
CA (in.): 60-120
Gas Engine: 6.2L V8
HP @ rpm: 316 @ 4179
Gas Engine: 6.2L V8
HP @ rpm: 385 @ 5500
Gas Engine: 6.8L V10
HP @ rpm: 362 @ 4750
Diesel/B20 Engine: 6.7L V8
HP @ rpm: 300 @ 2800
GVWR (lb.): 15,000-19,500
RANGER
Model: Regular Cab/SuperCab
Axle: 4×2/4×4
Payload (lb.): 1,260
Wheelbase (in.): 111.5-125.9
Length overall (in.): 189.4-203.6
Diesel Engine: 2.3L I4
HP @ rpm: 143 @ 5250
Gas Engine: 4.0 V6
HP @ rpm: 207 @ 5250
GVWR (lb.): 4,380-5,000
TRANSIT CONNECT
Model:100A/200A/300A/
110A/210A/310A XL/XLT
Axle: 4×2
Payload (lb.): 1,600
Wheelbase (in.): 114.6
Length overall (in.): 180.6
Turning circle (ft.): 39
Diesel Engine: 2.0L I4
HP @ rpm: 136 @ 6300
Electric motor/battery: 28-kWh lithium-ion battery pack
Range: Up to 80 miles
GVWR (lb.): 4,965-5,005
FREIGHTLINER
BUSINESS CLASS M2
Model: Business Class M2 106/106V/M2e Hybrid
Axle: 4×2/4×4/6×4/6×6/8×4
Wheelbase (in.): 136-270
BBC (in.): 106 for Day Cabs, 132 for Extended Cabs; 154 for 4-door Crew Cabs
CA (in.): 72-205
Diesel Engine: 170-380 hp (up to 470 hp for specialty markets)
GVWR (lb.): 16,000 and up
GMC
CANYON
Model: Full-Size Pickup Regular/Extended/Crew Cab 2WD/4WD
Payload (lb.): 1,465-1,484/1,422-1,741/1,230-1,572
Wheelbase (in.): 111.3-126
Length overall (in.): 192.4-207.1
Gas Engine: 2.9L I4
HP @ rpm: 185 @ 5600
Gas Engine: 3.7L I5
HP @ rpm: 242 @ 5600
Gas Engine: 5.3L V8
HP @ rpm: 300 @ 5200
GVWR (lb.): 4,850-5,300
SAVANA
Model: Regular/Extended Van G1500/G2500/G3500
Payload (lb.): 1,568- 4,343
Wheelbase (in.): 135-155
Length overall (in.): 224.1-244
Gas Engine: 4.3L V6
HP @ rpm: 195 @ 4600
Gas Engine: 4.8L V8
HP @ rpm: 280 @ 5200
Gas Engine: 5.3L V8
HP @ rpm: 310 @ 5200
Gas Engine: 6.0L V8
HP @ rpm: 324 @ 4700
Diesel Engine: 6.6L V8
HP @ rpm: 260 @ 3100
GVWR (lb.): 7,300-9,900
SIERRA
Model: Full-Size Pickup 1500/2500HD/3500HD/
Hybrid Regular/Extended/Crew Cab 2WD/4WD
Payload (lb.): 1,459-6,635
Wheelbase (in.): 119-167.7
Length overall (in.): 205.6-259.1
Gas Engine: 4.3L V6
HP @ rpm: 195 @ 4600
Gas/Ethanol Engine: 4.8L V8
HP @ rpm: 302 @ 5600
Gas/Ethanol Engine: 5.3L V8
HP @ rpm: 315 @ 5200
Gas Engine: 6.0L V8
HP @ rpm: 322 @ 4400
Gas Engine: 6.0L V8
HP @ rpm: 360 @ 5400
Gas Engine: 6.2L V8
HP @ rpm: 403 @ 5400
Hybrid Engine: 6.0L V8
HP @ rpm: 332 @ 5100
GVWR (lb.): 6,400-13,000
HINO
Model: 155 Diesel Hybrid
Wheelbase (in.): 114.2-173.2
Length overall (in.): 205-264
CA (in.): 92.2-151.2
Engine: Hino J05E-TP
HP @ rpm: 210 @ 2500
Torque (lb-ft) @ rpm: 440 @ 1500
GVWR (lb.): 14,500
Model: 195 Diesel Hybrid
Wheelbase (in.): 114-173.2
Length overall (in.): 205-264
CA (in.): 92-151.2
Engine: Hino J05E-TP
HP @ rpm: 210 @ 2500
Torque (lb-ft) @ rpm: 440 @ 1500
GVWR (lb.): 19,500
Model: 238
Wheelbase (in.): 152-253
Length overall (in.): 242-390.6
CA (in.): 84.6-185.6
Engine: Hino J08E-VC
HP @ rpm: 220 @ 2500
Torque (lb-ft) @ rpm: 520 @ 1500
GVWR (lb.): 23,000
Model: 258ALP/258LP
Wheelbase (in.): 152-271
Length overall (in.): 242.6-390.6
CA (in.): 84.6-203.6
Engine: Hino J08E-VC
HP @ rpm: 220 @ 2500
Torque (lb-ft) @ rpm: 520 @ 1500
GVWR (lb.): 25,500
Model: 268/268A
Wheelbase (in.): 152-271
Length overall (in.): 242.6-390.6
CA (in.): 84.6-203.6
Engine: Hino J08E-VC
HP @ rpm: 220 @ 2500
Torque (lb-ft) @ rpm: 520 @ 1500
GVWR (lb.): 25,950
HONDA
https://automobiles.honda.com/
RIDGELINE
Model: RT/RTS/RTL
Axle: 4×2/4×4
Payload (lb.): 1,486-1,546
Wheelbase (in.):122
Length overall (in.): 207
Gas Engine: 3.5L V6
HP @ rpm: 250 @ 5700
GVWR (lb.): 6,050
ISUZU
NPR
Model: NPR Eco-Max (Crew Cab available)
Payload (lb.): 6,315-6,453
Wheelbase (in.): 110-151.4
Length overall (in.): 200.6-242
CA (in.): 87.6-128.9
Diesel Engine: 3.0L Turbo/
Intercooled 4JJ1-TC
HP @ rpm: 150 @ 2800
Torque (lb-ft) @ rpm: 282 @ 1600-2800
GVWR (lb.): 12,000
Model: NPR Gas (Crew Cab available)
Payload (lb.): 6,189-6,997
Wheelbase (in.): 109-176
Length overall (in.): 200.5-267.5
CA (in.): 86.5-153.5
Gas Engine: GM Vortec 6.0L V8
HP @ rpm: 295 @ 4300
Torque (lb-ft) @ rpm: 372 @ 4000
GVWR (lb.): 12,000
Model: NPR-HD Diesel (Crew Cab available)
Payload (lb.): 7,565-8,336
Wheelbase (in.): 109-176
Length overall (in.): 200.5-267.5
CA (in.): 86.5-153.5
Diesel Engine: 5.2L Turbo/
Intercooled 4HK1-TC
HP @ rpm: 215 @ 2500 (AT)/195 @ 2650 (MT)
Torque (lb-ft) @ rpm: 452 @ 1850 (AT)/387 @ 1600 (MT)
GVWR (lb.): 14,500
Model: NPR-HD Gas (Crew Cab available)
Payload (lb.): 8,639-9,411
Wheelbase (in.): 109-176
Length overall (in.): 200.5-267.5
CA (in.): 86.5-153.5
Gas Engine: GM Vortec 6.0L V8
HP @ rpm: 295 @ 4300
Torque (lb-ft) @ rpm: 372 @ 4000
GVWR (lb.): 14,500
NQR
Model: NQR (Crew Cab
available)
Payload (lb.): 10,545-11,371
Wheelbase (in.): 109-200
Length overall (in.): 200.5-291.5
CA (in.): 86.5-177.5
Diesel Engine: 5.2L Turbo/
Intercooled 4HK1-TC
HP @ rpm: 215 @ 2500 (AT)/195 @ 2650 (MT)
Torque (lb-ft) @ rpm: 452 @ 1850 (AT)/387 @ 1600 (MT)
GVWR (lb.): 17,950
NRR
Model: NRR
Payload (lb.): 12,381-12,785
Wheelbase (in.): 109-212
Length overall (in.): 200.5-303.5
CA (in.): 86.5-189.5
Diesel Engine: 5.2L Turbo/
Intercooled 4HK1-TC
HP @ rpm: 215 @ 2500 (AT)/195 @ 2650 (MT)
Torque (lb-ft) @ rpm: 452 @ 1850 (AT)/387 @ 1600 (MT)
GVWR (lb.): 19,500
REACH
Model: Commercial Van
Payload (lb.): 4,250
Wheelbase (in.): 134-151
Length overall (ft.): 19.75-23.42
Width overall (in.): 88
Height overall (in.): 113
Diesel Engine: 3.0L Turbo/
Intercooled 4JJ1-TC
HP @ rpm: 150 @ 2800
Torque (lb-ft) @ rpm: 282 @ 1600-2800
GVWR (lb.): 12,000
KENWORTH
CLASS 5-6
CONVENTIONAL
Model: T170 Straight Truck
Axle: 4×2
Wheelbase (in.): 152-245
BBC (in.): 108.9
Diesel engine: Paccar 6.7L PX-6
HP: 200-300
Torque (lb-ft): 520-660
GVWR (lb.): 19,500
Model: T270 Diesel/Hybrid-Electric
Axle: 4×2/4×4
Wheelbase (in.): 140-272
BBC (in.): 108.9
Diesel engine: Paccar 6.7L PX-6
HP @ rpm: 200-325 @ 2600
Torque (lb-ft) @ rpm: 520-750 @ 1600
Diesel engine: Paccar 8.6L PX-8
HP: 240-330
Torque (lb-ft): 660-1,000
GVWR (lb.): 26,000
T370
Model: T370 Diesel/Hybrid-Electric
Axle: 4×2/4×4
Wheelbase (in.): 140-272
BBC (in.): 108.9
Diesel engine: Paccar 6.7L PX-6
HP @ rpm: 200-325 @ 2600
Torque (lb-ft) @ rpm: 520-750 @ 1600
Diesel engine: Paccar 8.6L PX-8
HP: 240-360
Torque (lb-ft): 660-1,050
GVWR (lb.): 26,001-33,000
MERCEDES-BENZ USA
SPRINTER
Model: Sprinter 2500 HC/2500 SHC/3500 HC/3500 SHC Cargo/Passenger/Cab
Chassis/Shuttle
Payload (lb.): 2,371-6,252
Wheelbase (in.): 144-170
Length overall (in.): 232.5-289.2
Diesel Engine: 3.0L V6 Turbo
HP @ rpm: 188 @ 3800
Torque (lb-ft) @ rpm: 325 @ 1400-2400
GVWR (lb.): 8,550-11,030
MITSUBISHI FUSO
CANTER FE SERIES
Model: FE125
Payload (lb.): 7,345
Wheelbase (in.): 110.2-151.6
Length overall (in.): 204.1-245.5
CA (in.): 81.2-122.6
Diesel engine: 3.0L 4P10 Turbo/Intercooled
HP @ rpm: 161 @ 3500
Torque (lb-ft) @ rpm: 295 @ 1600
GVWR (lb.): 12,500
Model: FE160
Payload (lb.): 10,535
Wheelbase (in.): 110.2-187
Length overall (in.): 204.1-280.9
CA (in.): 81.2-158
Diesel engine: 3.0L 4P10 Turbo/Intercooled
HP @ rpm: 161 @ 3500
Torque (lb-ft) @ rpm: 295 @ 1600
GVWR (lb.): 15,995
Model: FE160 Crew Cab
Payload (lb.): 9,880
Wheelbase (in.): 169.3-187
Length overall (in.): 263.2-280.9
CA (in.): 103.4-121.1
Diesel engine: 3.0L 4P10 Turbo/Intercooled
HP @ rpm: 161 @ 3500
Torque (lb-ft) @ rpm: 295 @ 1600
GVWR (lb.): 15,995
Model: FE180
Payload (lb.): 12,535
Wheelbase (in.): 110.2-187
Length overall (in.): 204.1-280.9
CA (in.): 81.2-158
Diesel engine: 3.0L 4P10 Turbo/Intercooled
HP @ rpm: 161 @ 3500
Torque (lb-ft) @ rpm: 295 @ 1600
GVWR (lb.): 17,995
CANTER FG SERIES
Model: FG4x4
Payload (lb.): 8,130
Wheelbase (in.): 134.4
Length overall (in.): 227.8
CA (in.): 104.8
Diesel engine: 3.0L 4P10 Turbo/Intercooled
HP @ rpm: 161 @ 3500
Torque (lb-ft) @ rpm: 295 @ 1600
GVWR (lb.): 14,050
MORGAN OLSON
ROUTE STAR WALK-IN VAN BODY
Model: Freightliner MT45
Body size (ft.): 12-22
Wheelbase (in.): 138-208
Interior width (in.): 86 or 93
Interior height (in.): 81 or 85
Capacity (cu. ft.): 611-1,190
Body weight (lb.): 1,937-2,967
Model: Freightliner MT55
Body size (ft.): 14-22
Wheelbase (in.): 158-218
Interior width (in.): 86 or 93
Interior height (in.): 81 or 85
Capacity (cu. ft.): 662-1,190
Body weight (lb.): 1,993-2,967
Model: Ford
Body size (ft.): 11-18
Wheelbase (in.): 138, 158, 176
Interior width (in.): 86 or 93
Interior height (in.): 81 or 85
Capacity (cu. ft.): 459-968
Body weight (lb.): 1,688-2,675
Model: Workhorse
Body size (ft.): 11-20
Wheelbase (in.): 125-190
Interior width (in.): 86 or 93
Interior height (in.): 81 or 85
Capacity (cu. ft.): 464-1,080
Body weight (lb.): 1,683-2,801
NAVISTAR
ESTAR
Payload (lb.): 4,000
Turning circle (ft.): 36
Motor/battery: 70 kW/80kWhr lithium-ion cassette
Range: Up to 100 miles
Maximum speed (mph): 50
HP @ torque (lb-ft): 102 @ 221
GVWR (lb.): 12,100
GAWR (lb.): 5,730 front, 7,053 rear
INTERNATIONAL
TERRASTAR
Model: Day Cab/Extended Cab/Crew Cab
Axle: 4×2/4×4
Wheelbase (in.): 158
BBC (in.): 107-150.9
Diesel Engine: MaxxForce 7
HP: 300
Torque (lb-ft): 660
Front axle (lb.): 6,000-8,000
Rear axle (lb.): 10,000-13,500
GVWR (lb.): 16,000-19,500
INTERNATIONAL
CITYSTAR SERIES
Model: CF500
Axle: 4×2
Wheelbase (in.): 113-167
BBC (in.): 63.3
CA (in.): 84-138
Diesel Engine: 4.5L V6 (MaxxForce 5)
HP @ rpm: 200 @ 2700
Torque (lb-ft) @ rpm: 440 @ 1850
GVWR (lb.): 16,000
Model: CF600
Axle: 4×2
Wheelbase (in.): 113-185
BBC (in.): 63.3
CA (in.): 84-156
Diesel Engine: 4.5L V6 (MaxxForce 5)
HP @ rpm: 200 @ 2700
Torque (lb-ft) @ rpm: 440 @ 1850
GVWR (lb.): 17,999-19,500
INTERNATIONAL
DURASTAR SERIES
Model: 4100
Axle: 4×2 LP
Wheelbase (in.): 140-217
Length overall (in.): 219-353
BBC (in.): 107-150.9
CA (in.): 73-150
Diesel Engine: 230 hp (MaxxForce 7)
GVWR (lb.): 17,800-19,500
Model: 4300/4300 LP
Axle: 4×2/4×4/6×4/4×2 LP
Wheelbase (in.): 128-254/140-254
Length overall (in.): 207-390/219-390
BBC (in.): 107-150.9
CA (in.): 61-187/73-187
Diesel Engine: 200-300 hp (MaxxForce 7)/300 hp (MaxxForce DT)/330 hp (MaxxForce 9)/210-255 hp (DT466)
GVWR (lb.): 23,500-37,000/23,500-27,000
Model: 4400/4400 LP
Axle: 4×2/4×4/6×4/4×2 LP
Wheelbase (in.): 140-254/140-254/152-254
Length overall (in.): 219-390/219-390/255-390
BBC (in.): 107-150.9
CA (in.): 73-187/73-187/85-187
Diesel Engine: 300 hp (MaxxForce 7)/300 hp (MaxxForce DT)/225-330 hp (MaxxForce 9)/285 hp (MaxxForce 10)
GVWR (lb.): 25,500-44,000/23,500-27,000/44,000-54,000
Model: 4400 Mid-Cab
Tractor
Axle: 4×2
Wheelbase (in.): 128-300
Length overall (in.): 210.9-230.9
BBC (in.): 107-150.9
CA (in.): 68.9-88.9
Diesel Engine: 225-300 hp (MaxxForce 9)/ 310-330 hp (MaxxForce 10)
GVWR (lb.): 29,000-35,000
Model: Hybrid Conventional/Extended Cab
Axle: 4×2
Wheelbase (in.): 152-254
BBC (in.): 107-150.9
Diesel Engine: 225 hp (DT)
Transmission: Eaton Fuller hybrid drive 6-speed automated manual, with or without ePTO
Front axle (lb.): 8,000-14,000
Rear axle (lb.): 12,200-23,000
NISSAN
www.nissancommercialvehicles.com
FRONTIER
Model: King Cab/Crew Cab XE/SE/PRO-4X/LE
Payload (lb.): 913-1,524
Wheelbase (in.): 125.9-139.9
Length overall (in.): 205.5-219.4
Diesel Engine: 2.5L I4
HP @ rpm: 152 @ 5200
Torque (lb-ft) @ rpm: 171 @ 4400
Gas Engine: 4.0L V6
HP @ rpm: 261 @ 5600
Torque (lb-ft) @ rpm: 281 @ 4000
Curb Weight (lb.): 3,686-4,696
TITAN
Model: King Cab/Crew Cab XE/SE/PRO-4X/LE
Payload (lb.): 1,644-2,153
Wheelbase (in.): 139.8-159.5
Length overall (in.): 224.6-244.2
Gas Engine: 5.6L DOHC V8
HP @ rpm: 317 @ 5200
Torque (lb-ft) @ rpm: 385 @ 3400
Curb Weight (lb.): 4,847-5,556
NV
Model: Van 1500, 2500 HD, 3500 HD Standard Roof/High Roof
Axle: 4×2
Payload (lb.): 2,535-3,925
Wheelbase (in.): 146.1
Length overall (in.): 240.6
Gas Engine: 4.0L V6
HP @ rpm: 261 @ 5600
Torque (lb-ft) @ rpm: 281 @ 4000
Gas Engine: 5.6L V8
HP @ rpm: 317 @ 5200
Torque (lb-ft) @ rpm: 385 @ 3400
Curb Weight (lb.): 5,791-6,143
PETERBILT MOTORS CO.
CONVENTIONAL
Model: 325
Wheelbase (in.): 150-274
BBC (in.): 106
Diesel engine: Paccar 6.7L PX-6
HP: 200-300
Torque (lb-ft): 520-620
GVWR (lb.): 19,500
Model: 330 Diesel/Hybrid-Electric
Wheelbase (in.): 150-274
BBC (in.): 106
Diesel engine: Paccar 6.7L PX-6
HP: 200-325
Torque (lb-ft): 520-860
GVWR (lb.): Up to 26,000
Model: 337 Diesel/Hybrid-Electric
Axle: 6×4/4×2
BBC (in.): 108
Diesel engine: Paccar 6.7L PX-6
HP: 240-325
Torque (lb-ft): 520-750
Diesel engine: Paccar 8.3L PX-8
HP: 240-360
Torque (lb-ft): 600-1,050
GVWR (lb.): 26,000-33,000
TOYOTA
TACOMA
Model: Regular/Access/Double Cab/X-Runner
Axle: 4×2/4×4
Payload (lb.): 895-1,510
Wheelbase (in.): 109.6-140.6
Length overall (in.): 190.4-221.3
Engine: 2.7L I4 DOHC with VVT-i
HP @ rpm: 159 @ 5200
Torque (lb-ft) @ rpm: 180 @ 3800
Engine: 4.0L V6 DOHC with VVT-i
HP @ rpm: 236 @ 5200
Torque (lb-ft) @ rpm: 266 @ 4000
GVWR (lb.): 4,600-5,450
TUNDRA
Model: Full-Size Regular/Double/CrewMax Cab Work Truck/Platinum 2WD/4WD
Axle: 4×2/4×4
Payload (lb.): 1,315-1,745
Wheelbase (in.): 145.7-164.6
Length overall (in.): 228.7-246.7
Engine: 4.0L V6
HP @ rpm: 270 @ 5600
Torque (lb-ft) @ rpm: 278 @ 4400
Engine: 4.6L V8
HP @ rpm: 310 @ 5600
Torque (lb-ft) @ rpm: 327 @ 3400
Engine: 5.7L V8
HP @ rpm: 381 @ 5600
Torque (lb-ft) @ rpm: 401 @ 3600
Engine: 5.7L V8 Flex-Fuel
HP @ rpm: 381 @ 5600
Torque (lb-ft) @ rpm: 401 @ 3600
GVWR (lb.): 6,400-7,200
UD TRUCKS
Model: UD1800
Payload (lb.): 9,700-10,040
Wheelbase (in.): 148.43-216.54
CA (in.): 111.57-179.69
Length overall (in.): 259.65-360.83
Diesel Engine: GH7 6.0L
HP @ rpm: 245 @ 2500
Torque (lb-ft) @ rpm: 530 @ 1400
GVWR (lb.): 17,995
Model: UD2000
Payload (lb.): 11,180-11,520
Wheelbase (in.): 148.43-216.54
CA (in.): 111.57-179.69
Length overall (in.): 259.65-360.83
Diesel Engine: GH7 6.0L
HP @ rpm: 245 @ 2500
Torque (lb-ft) @ rpm: 530 @ 1400
GVWR (lb.): 19,500
Model: UD2300LP
Payload (lb.): 14,235-14,645
Wheelbase (in.): 147.44-215.55
CA (in.): 111.57-179.69
Length overall (in.): 259.65-360.83
Diesel Engine: GH7 6.0L
HP @ rpm: 245 @ 2500
Torque (lb-ft) @ rpm: 530 @ 1400
GVWR (lb.): 23,000
Model: UD2300DH
Payload (lb.): 14,085-14,495
Wheelbase (in.): 147.44-215.55
CA (in.): 111.57-179.69
Length overall (in.): 259.65-360.83
Diesel Engine: GH7 6.0L
HP @ rpm: 245 @ 2500
Torque (lb-ft) @ rpm: 530 @ 1400
GVWR (lb.): 23,000
Model: UD2600
Payload (lb.): 14,830-15,860
Wheelbase (in.): 147.64-253.94
CA (in.): 114.92-221.22
Length overall (in.): 246.85-419.69
Diesel Engine: GH7 6.0L
HP @ rpm: 245-280 @ 2500
Torque (lb-ft) @ rpm: 530-650 @ 1400
GVWR (lb.): 25,995
Model: UD2600LP
Payload (lb.): 14,880-15,910
Wheelbase (in.): 147.64-253.94
CA (in.): 114.92-221.22
Length overall (in.): 246.85-419.69
Diesel Engine: GH7 6.0L
HP @ rpm: 245-280 @ 2500
Torque (lb-ft) @ rpm: 530-650 @ 1400
GVWR (lb.): 25,995
UTILIMASTER
AEROMASTER
WALK-IN VAN
Model: Ford, Freightliner, Workhorse
Wheelbase (in.): 125-208
Length overall (ft.): 11-22
Interior body height (in.): 73-85
Interior body width (in.): 78.5-93.5
Distance between wheel wells (in.): 41
METROMASTER
PARCEL DELIVERY VEHICLE
Model: Ford, GM
Length overall (ft.): 10 or 12
Interior body height (in.): 78
Interior body width (in.): 79
Exterior body width (in.): 81
GVWR (lb.): 9,500
UTILIVAN PARCEL
DELIVERY VEHICLE
Model: Ford, GM
Length overall (ft.): 10-17
Width overall (in.): 80 or 96
Interior body width (in.): 92.25-95
GVWR (lb.): 14,500
TRADEMASTER PARCEL DELIVERY VEHICLE
Model: Ford, Freightliner, GM, Hino, Mitsubishi Fuso
Body size (ft.): 10, 12, 14
Width overall (in.): 80, 90, 96
Wheelbase (in.): 109-217
Height overall (in.): 92-116
Interior body width (in.): 46, 49
Interior body length (in.): 119-177
Interior body height (in.): 60.5-78
TRUCK BODY
Length overall (ft.): 9-28
Width overall (in.): 96-102
Height overall (in.): 72-108
Interior body length (in.): 108.5-339.5
Interior body width (in.): 92.25-95
Interior body height (in.): 72.75-108.75
WORKHORSE
W42
Wheelbase (in.): 125-190
Gas Engine: GM Vortec 4.8L V8
HP @ rpm: 264 @ 4800
Torque (lb-ft) @ rpm: 295 @ 4400
GVWR (lb.): 12,000-14,500
W62
Wheelbase (in.): 157-218
Gas Engine: GM Vortec 6.0L V8
HP @ rpm: 299 @ 4400
Torque (lb-ft) @ rpm: 357 @ 4400
Diesel Engine: International MaxxForce 7 6.4L V8
HP @ rpm: 230 @ 2600
Torque (lb-ft) @ rpm: 560 @ 1400
GVWR (lb.): 17,000-23,500
– Dean Smallwood
