Stertil-Koni high on heavy-duty Diamond Lift

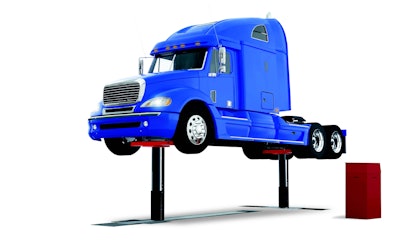

Stertil Koni Diamond Lift

Stertil-Koni’s Diamond Lift is a high-pressure telescopic piston lift available in either a two- or three-piston configuration with a total lifting capacity of 64,000 pounds and 96,000 pounds, respectively. The telescopic pistons rods are designed to protect seals from potential damage from debris and are hard chrome-plated for added protection against corrosion and wear.

The lift utilizes biodegradable oil, and the upper portion of the steel containment is hot-galvanized, which provides corrosion resistance at floor level and helps facilitate proper interlock with the foundation. The containments are coated internally and externally with DiamondGuard, which not only helps safeguard against corrosion and electrolysis but also helps prevent hazardous shop fluids from entering the environment.

The lift can be lowered into a mechanically locked situation without placing undesired pressures on the piston seals; the locking system utilizes a hardened nitro-carburized locking rod to help provide added corrosion and wear resistance, while the gravity-engaged locking assembly is built for easy service and can be accessed from floor level.

The moveable lifting unit and aluminium trench covering system travel on ultra-high molecular weight polyethylene slides atop a stainless-steel guide. The lift’s intuitive controls include ultrasonic sensors designed to provide real-time synchronization, and all power units and control components are located in an above-ground console for easier troubleshooting and maintenance.
