Harting’s electrical interfaces

Updated Aug 19, 2019

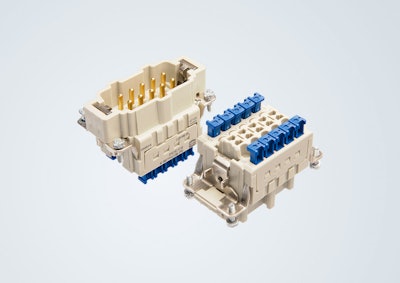

Harting Han Es Press Hmc High Mating Cycles Electrical Interface Series 2019 08 16 17 05Harting’s Han ES Press HMC (High Mating Cycles) series of electrical interfaces are engineered for quick installation without tools and to be robust enough to be connected and disconnected multiple times. The contact inserts are equipped with a pretensioned cage clamp that is triggered by an actuator. If the actuator is pushed into the contact chamber, the cage clamp returns to its original position and secures the conductor. Only a screwdriver is needed to release the connection. The interface is made to fit standard housing sizes 6 B to 24 B. Contacts and grounding elements feature a surface coating designed to resist abrasion and to be reliable in harsh high-vibration environments.

Harting North America, www.harting.com
