Eaton’s expanded PTO portfolio

Eaton expanded its mobile power-takeoff (PTO) portfolio to include two additional Bezares PTO units: the Bezares 95X series four-bolt rear-mounted PTO for the Eaton Cummins Automated Transmission Technologies Endurant 12-speed automated transmission, and the Bezares 120X PTO for the Detroit DT12 automated transmission.

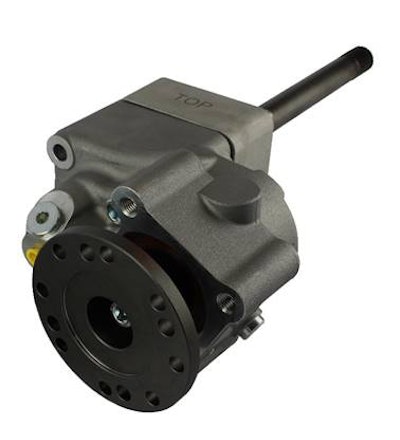

Pto 2020 01 27 15 02The 95X series, the lightest and most compact rear-countershaft PTO for Endurant in the heavy-duty segment, features pneumatic shifting and is available with three different internal ratios and output types, with an offset design that helps improve the position of an attached pump to avoid interference with other vehicle elements.

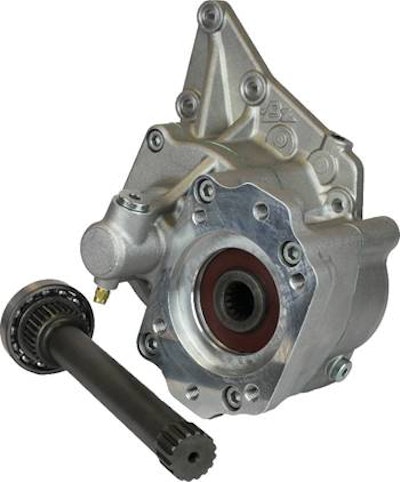

Thumbnail Image008 2020 01 27 15 03The heavy-duty two-gear 120X series PTO is built from an aluminum housing, coupling heavy-duty strength with light weight, and fits models DT12-DA/14.93-1.0 and DT12-OA/14.96-1.0. Featuring internal ratios from 1:1 to 1:1.8, the 120X PTO series integrates with the DT12’s auxiliary systems and offers four different output options. The PTO housing is designed to improve clearance and ease of installation, while the DIN output option permits multiple configuration options. A lube pump flange is included, further simplifying installation.
