Tilt-Deck Equipment Trailer

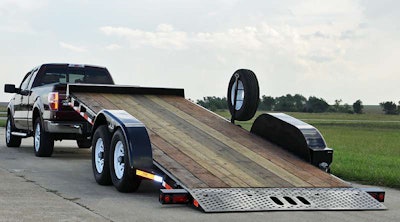

Landoll LT1220 Utility Tag Trailer is ideal for transporting smaller equipment behind HD pickups

Moving a skid-steer, mini-excavator or numerous other pieces of equipment from shop to jobsite and back is just part of the daily routine for a lot of contractors.

Having the right trailer for such tasks is just as important as the task itself because the safe transport of equipment, and the well-being of the person doing the load/unloading and towing is at stake.

Landoll’s heavy-duty tandem-axle LT1220 Utility Tag Trailer covers all those trailering bases.

It’s a 20′, 12,000-pound-load capacity tilt-deck model featuring a hydraulic tilt-control system that holds the deck in a tilted position during all loading/unloading operations.

A cushion cylinder tilts the deck for easy loading and unloading, and a heavy-duty bed lockdown secures the bed in transport position.

The approach plate of the powder-coated trailer is a Landoll-exclusive traction plate with four keyhole tie downs. Additional tie-down points are located all along the deck sides to make securing equipment of all types easy.

STANDARD FEATURES

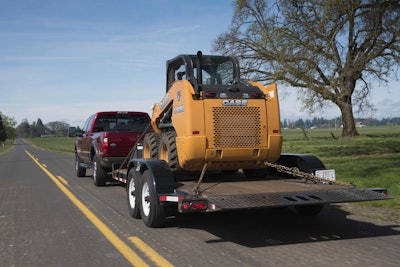

Click to watch video review.

• Estimated Base Weight:  3,700 lbs.
• Capacity 12,000 lbs.
• G.V.W.R. 15,700 lbs.
• Main Frame:  6″ Channel
• Crossmembers:  4″ Jr. I-Beam 80,000 PSI Yield on 24″ Centers
• Jack:  7,000 lb. Top Crank Bull Dog
• Tires:  235/80R 16LRE
• Wheels:  Steel Wheels – 16.5 x 6.75 – 8-Bolt
• Axles:  2 – 7,000 lbs. EZ Lubes
• Suspension:  Torflex Axles
• Brakes:  12″ x 2″ Electric Brakes (Both Axles)
• Hitch Options:  2-5/16″ Ball; 3″ Pintle Hook w/12″ Vertical Height Adjustment
• Tool Box:  Frme-mounted under deck
• Decking:  2″ CA-B Copper Azole Treated Pine
• Deck Height (Loaded):  22″
• Width  80″ Inside Fenders – 102″ O.A.
• Length:  20′ Tilt Deck
• Load Angle:  11.4°
• Tilt Cylinder:  2-1/2 x 16 Cushion Cylinder with Tilt Control System
• Approach:  Full Width Landoll Traction Plate
• Lock Down:  Positive Over Center
• Lights:  Sealed Beam – per I.C.C. and Federal Regulations
• Electrical:  6 Pole Electric Plug – Wiring in Conduit
• Fenders:  14 Gauge – Cold Rolled Formed with Back
• Running Boards:  16 Gauge – Cold Roll Formed with Anti-Skid Tape
• Tie Rings:  5/8″ D-Rings (4)
• Stake Pockets:  4 per Side
• Safety Chain:  3/8″ x 35″ – G70 Chain with GelCel Chargeable Battery and Box
• Finish:  Your Choice: White, Black or Yellow Non-Fading, Scratch and Chip Resistant “Powder Coat” Paint
• Decals:  Hi-Visibility Reflective Package
