Parker Chelsea debuts 560V Series PTO

Updated Aug 15, 2012

Parker Chelsea 560 V Series Pto

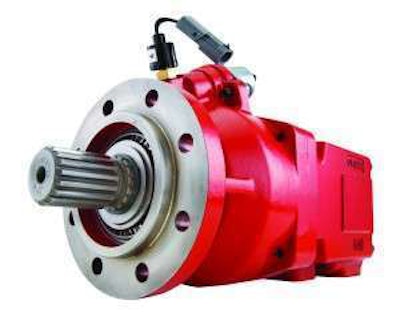

Parker Chelsea’s 560V Series PTO is a rear-mounted power take-off system with an integrated vane pump with interchangeable vane cartridges that help achieve flow rates from 3.4 to 31.7 gallons per minute at 1,200 rpm and pressure ranges up to 3,500 psi. The 560V’s clutch pack is designed to provide a single continuous-duty torque rating of 335 lb.-ft.

Both the main PTO housing and the pump’s suction and pressure ports can be rotated for added clearance under a truck. A wet spline connection between the PTO and vane pump helps add to equipment life while reducing maintenance costs and time.
