Hunter designs four-post lift for Mercedes-Benz

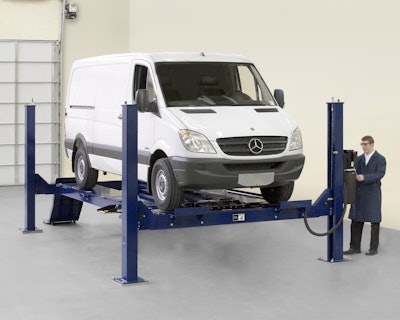

Hunter’s 4PMB four-post alignment lift is a high-capacity option for Mercedes-Benz dealers to service a wide range of vehicles, including Sprinter vans. The 4PMB provides an 18,000-pound lifting capacity and maximum wheelbases of 193 inches for general service and 177 inches for both two-wheel and four-wheel alignment service.

Optional features include Hunter’s PowerSlide system that allows a technician to lock and unlock turnplates and slipplates with the flip of a switch, eliminating multiple trips around the vehicle and the hassle of removing and replacing lock pins. When equipped with Hunter’s Fully Integrated Alignment console, which has the capability to communicate directly to the lift, plate operation is controlled automatically by the aligner, as needed during the alignment.

The FIA-equipped 4PMB model also includes Hunter’s Inflation Station feature, which speeds service and ensures more accurate alignments by automatically setting tire pressure for each wheel simultaneously with air hose reels integrated into the lift runways at each wheel position. The tire pressure can be preset at the lift console or the aligner when FIA-equipped.
