TE Connectivity’s power connectors

Updated Aug 1, 2019

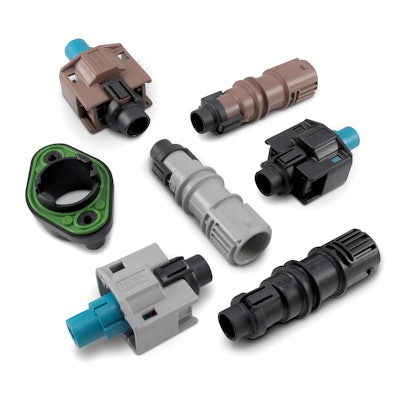

Te Connectivity Deutsch Dtsk Power Connectors 2019 07 31 11 22TE Connectivity’s Deutsch DTSK power connectors are designed for a variety of rugged, sealed applications. The heavy-duty single-pole thermoplastic connectors accept size Ø8mm contacts that are rated up to 125 amps and are engineered to withstand harsh conditions in trucking, busing, agricultural, mining, construction and marine applications. Designed with ease of use and simplicity in mind, the connectors feature latch-style mating and an integrated secondary lock. Individual wire seals with a rear protective cover help protect the connections from dirt, dust and water ingress, making the connectors an effective option for applications that require an environmentally sealed connector. They can be used inline or mounted as pass-through connectors with the addition of an optional flange.

TE Industrial & Commercial Transportation, www.te.com/ict
