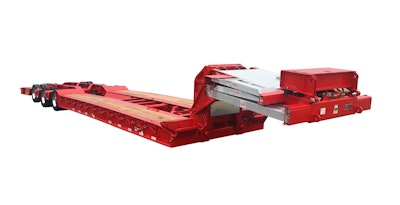

Talbert 50 Cc Bh 50 Ton Bus Hauler 2017 06 14 21 41Talbert Manufacturing’s 50CC-BH 50-Ton Bus Hauler is designed to provide enhanced versatility with an in-deck winch for users to load equipment from either the trailer’s front or rear. The 50CC-BH is engineered with a 50-ton capacity rating for hauling a wide range of oversized equipment, including buses, excavators and Class A trucks. The trailer also is suited for hauling equipment with low clearance and long wheelbases such as graders and aircraft refueler trucks.

The deck’s main and side beams, gooseneck and rear axles all are engineered with extra steel, and the trailer features rollers and a snatch block designed to allow users to pull equipment from either end using the 20,000-pound planetary in-deck winch. Customers can operate the winch via remote control.

The 50CC-BH is equipped with three close-coupled axles and features a 22-foot 6-inch lower deck length, plus a 20-foot 5-inch rear bridge, creating a 43-foot load base. The trailer has a 21-inch deck height and a 24-inch flip-up gooseneck that increases the unit’s 84-inch swing radius to 108 inches, allowing the unit to be used with both three- and four-axle trucks and keeping it within the 53-foot overall length limit when running empty.

The 50CC-BH has heavy-duty 10-foot removable aluminum ramps that can be stored in compartments at the trailer’s gooseneck. It is designed with a low front and rear load angle and manufactured with heavy-duty T-1 100,000-psi minimum yield steel for added durability and longevity. Valspar R-Cure 800 paint comes standard to help prevent corrosion while providing a long-lasting finish.

Talbert Manufacturing, TalbertMfg.com
